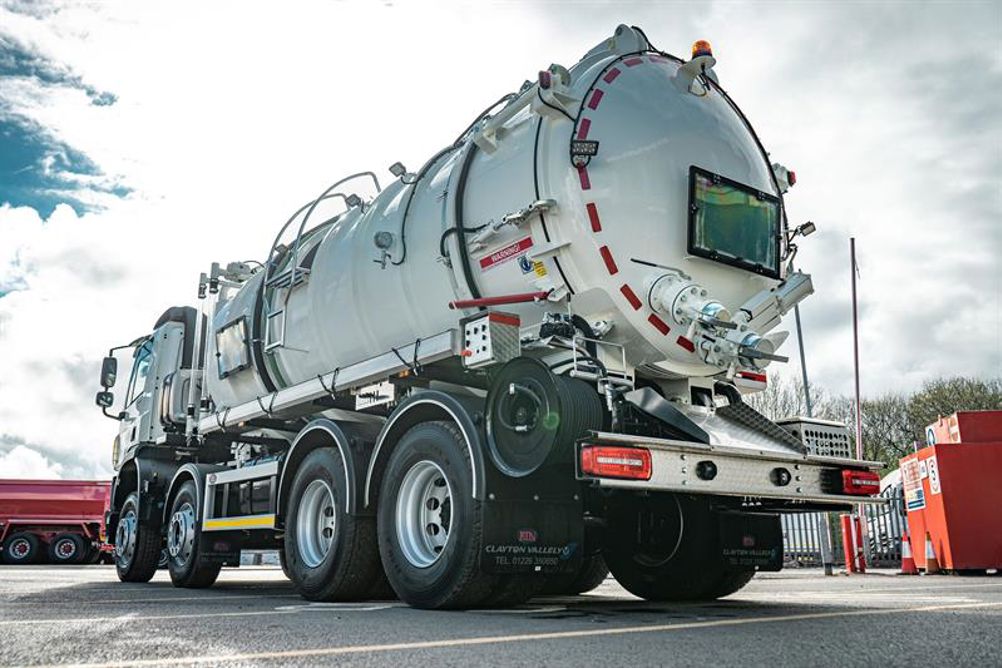

Mounted on a DAF CF450 chassis, the new unit, which boasts a tipping body with fully-opening rear door, is said to be suitable for operations including clearing contaminated water or sludge from interceptors.
The detailed specification includes a 4,200 gallon capacity tank which is split to accommodate 4,000 gallons of debris and 200 gallons of water. The straight cylindrical tank is mounted on a sub frame as per the chassis manufacturer’s recommendations and coupled to an Edbro multi-stage unit. A Jurop RV520 water cooled vacuum pump, complete with a Jurop silencer pipe for pressure and vacuum manual operation - 520 CFM - is fitted as standard.
The jetting system is based on a Speck NP25/50-210 pump which is designed to deliver 50 litres per minute. A control box is mounted on the nearside for all operations and includes the Jurop 100 metre ½ inch hydraulic-operated stainless steel hose reel.
