Casting my eyes over the registration figures for four-axle rigids, looking for a representative brand, I couldn’t do much better than select Volvo’s current FMX chassis. And with a proven heritage in tipper construction, it proved to be an interesting ride.
Perhaps the first pint to note: as with fleet tractors, it’s the transmissions that have brought the biggest change. That said, the inexorable creep of AMTs (automated manual transmissions) has taken longer to gain traction here. Martin Tomlinson, transport services manager at Volvo in Warwick, agrees that’s mostly been about a residual fear of getting stuck off-road. “When the first AMTs came out they weren’t perfect, no matter who made them,” he recalls. “Anyone in tipper operations would have been unimpressed and dismissed them as only for the long-haul tractor men.”
First impressions tend to stick, so AMTs have taken time. However, for deniers, the excuses are running out. Apart from a spot of judicious driver training, there are innovations aplenty to quash the night terrors of getting bogged down, or feeling that an ‘honest’ manual would have rallied to your rescue. The distribution and construction software package, a switch to disengage ABS (needed for wheel washers at site exits), the rocking function, and a power mode all add to the traction aids.
They not only make getting unstuck easier, but reduce the chances of getting mired in the first place. With all these embellishments, the AMT and its relevance to tipper and mixer operations has been transformed. And when you consider that Volvo’s first I-Shift AMT was sold in 2001 – having learned from the imperfections of the GearTronic – it’s hardly new. The result: Tomlinson can’t remember when he last saw a four-axle rigid FMX with a manual box.
Weighting game
Meanwhile, there are also changes in bodywork preferences. The traditional division – of S&A (sand and aggregates) operators taking light aluminium bodies and muck-away going for steel – is starting to blur. S&A operators formerly wedded to the payload advantages of aluminium tipper bodies are increasingly taking a different view.
“Many are coming to the conclusion that the modest weight penalty of steel is more than outweighed by the residual value advantage and its multi-role ability,” confirms Tomlinson. And much the same goes for sleeper cabs. A day-work driver doesn’t need a sleeper, but it is becoming an additional spec item that lubricates the move into the used market.
Volvo and stablemate Renault have also been enjoying some success with their tridem. First appearing on the FM, it’s an 8x4 with a three-axle, air-suspended rear bogie. The two drive axles have twin tyres, with singles on the rearmost steer axle. The likes of animal feed delivery in the Peak District would be an obvious application, yielding the access of a six-wheeler but the payload of an eight – and with winter traction not offered by an 8x2 rear steer.
How does Volvo fare? Mark Luck runs a company of 85 years standing from a base in Swanley, Kent. He has a mixed fleet of 45 multi-wheelers and artics with tipping trailers that work off road on waste handling, groundworks and construction. It’s a tough operation, and his fleet average on rigid chassis is around 6.3mpg. His eight FMX chassis, however, are returning 6.5—7.5mpg, depending on the work. Luck’s philosophy is to buy bigger engines, which he finds give a better return, and keep them for longer.
The figures may not look startling, but the duty cycle is the key and it’s the percentage above fleet average that counts. Importantly, though, recent acquisitions at Mark Luck include an FMX-540 tridem 8x4 on a ’64 plate, and its fuel performance and that of his other FMXs have led him to “only buy Volvos from now on”. Luck’s was the first new-series FMX tridem in the UK to have been fully-approved for N3G off-road use, and it was also the first to take Volvo’s dynamic steering.
Future gazing
Meanwhile, Volvo’s multi-wheelers are adapting to market movements that may eventually morph to the UK. Ireland allows 46 tonnes on six-axle artics, and 36 tonnes on large rigids. That has spawned a 10x4 chassis from Volvo – although, with only two on order, time will tell.
The new beast uses a regular 8x4 layout with an additional steering axle at the rear. It harnesses Volvo’s ‘T’ ride five-leaf steel suspension on the rear bogie, instead of the usual three-leaf ‘B’ ride familiar in the UK. The heavier five-leaf set-up is almost standard fare in Ireland – widely regarded as a more ‘robust’ environment.
For traditional chassis, though, there are other developments in train. The lambasting eight-wheel tippers have been getting as the top cyclist predator in London is leading to scrutiny. So Volvo is bringing out an all-air suspension 8x4 as an experiment.
The OEM believes that this could address the ride height issue blamed for putting cyclists out of drivers’ sightlines. Instead of having to work with a high ride height essential for off-road, all-round air drops the chassis in regular traffic, raising its game again only when it gets on site. Apart from cycle safety, there will be roll stability advantages too.
Driver’s view
The working environment and level of vehicle control offered to drivers of all the major manufacturers’ four-axle chassis is now as good as their long-haul tractor cousins. Today, a fully loaded eight-wheeler is driven as much with fingers as feet. Cruise control and the ability to set under- and over-speed parameters are probably the greatest aids to holding down fuel economy, while still making good progress.
And checking that progress is more efficient than ever: engine brakes and retarders are now so powerful that friction materials can, if the driver has a mind, be made to last and last. For such a high centre of gravity, four-leggers’ steering and stability are also remarkable – although I’m not so sure about Volvo’s dynamic steering option on eight-wheelers in the UK.
I drove my FMX in Gothenburg at the last new model launch. Like the system on Mercedes’ Arocs, the advanced steering delivers very light effort at low speeds. It’s certainly a pleasure to drive and it makes progress over even very poor ground effortless. It obviously works when the truck is stationary too – so I can’t help but feel it might add to tyre wear. Volvo says not, but since it separates the driver from the forces at work on his tyre faces, we’ll have to see.
It’s obvious that eight-wheeler tipper and mixer drivers have never had it so good. Unless, that is, they work in London, where they fall foul of the blame game.
Proven heritage

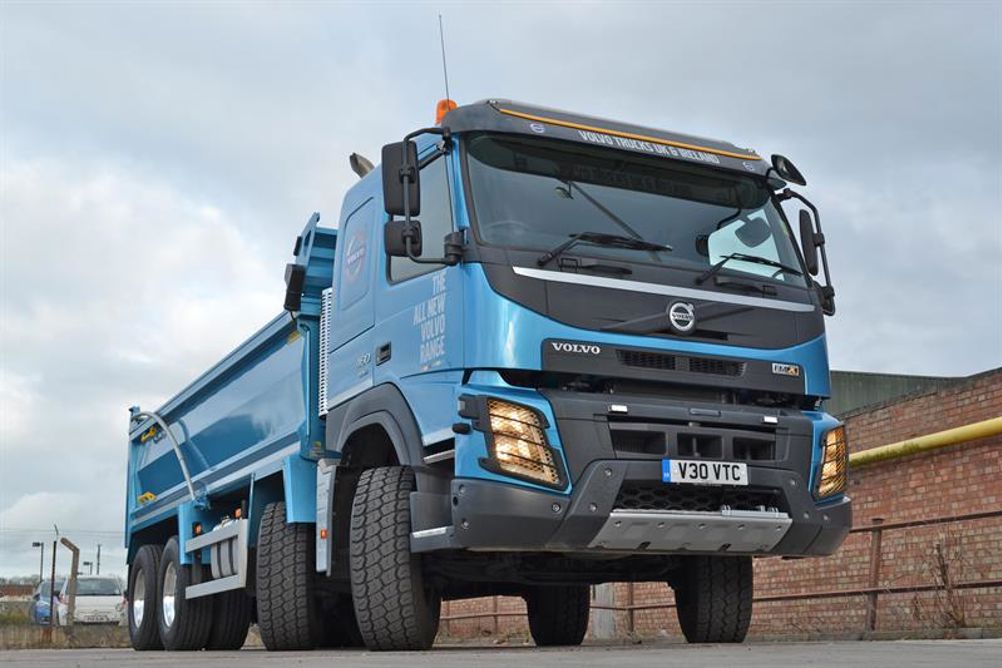

The specimen I took out on test was built in Ghent, Belgium – one of the two Volvo truck assembly plants, the other being Gothenburg. It’s an aside, but it hasn’t always been that way: Volvo’s plant in Irvine, Ayrshire, developed an enviable reputation for home grown six- and eight-wheel rigid chassis in the late 1990s.
First came the F86, followed by the F7. By the time it closed in 2000, these had spent so long at the top of the heavy rigid charts that Gothenburg executives had come to regard the UK as a home market.
That legacy remains, although fellow Swede Scania is now top dog, with more than 1,000 registrations in 2014, and 28.9% market share. Volvo came a strong second, putting 758 multi-wheel rigids on the road in the same year, and taking 20% share.
