In a Moving On blog post, the DVSA said it is encountering an increasing number of heavy goods vehicles with large HIAB-type loader cranes where vehicles have often been converted to accommodate cranes of 80 tonnes lifting capacity or more.
The additional weight caused by these conversions makes the vehicles close to their maximum carrying capacity meaning they are often unable to tow a standard semi-trailer without exceeding the permitted vehicle length.
Operators, transport managers and drivers must take note of this when transporting a load on such a vehicle and look at the regulations. Operators need to make sure they are familiar with how they transport loads and understand whether they come under STGO (Special Type General Order) regulations or fall under Construction & Use (C&U) requirements.
Some manufacturers have indicated to operators they can run these “HIAB tractor units” under STGO regulations. This is not the case. Operators need to make sure loader crane vehicles are working according to the correct regulations.
The DVSA has found a number of issues, including:
- tractor units with large cranes over the permitted length and weight allowable which then make them non-compliant from a safety point of view
- some confusion regarding the amount of allowable front or rear projection
Operators are liable where vehicles do not meet the requirements.
At the roadside, the DVSA has seen increasing non-compliance partly due to a lack of understanding or incorrect information being shared.
Example 1

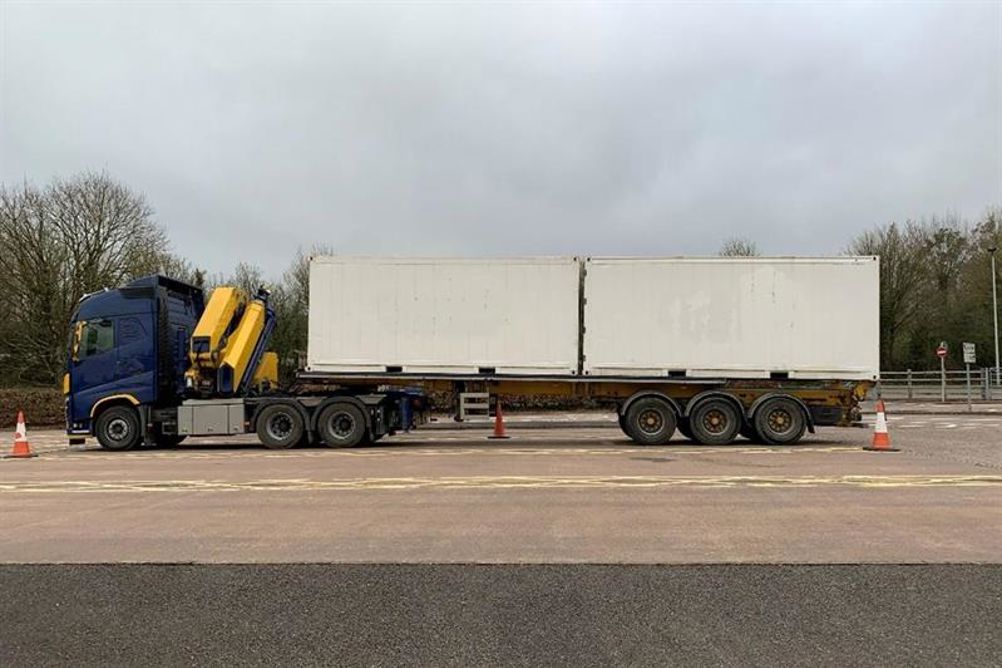

A vehicle combination seen at the roadside with maximum length of 17.8mts and the tractor unit 1,200kgs overweight (16.5mts is the maximum under C&U regs). In this case, the vehicle was carrying 2 x 20ft empty containers which do not constitute an abnormal load.
In March 2021, this vehicle combination was checked by DVSA in Devon. It was a tractor unit with a large HIAB fitted towing a semi-trailer. After being measured by examiners, it was found to be a total length of 17.65mts. The maximum permitted length for this type of vehicle is 16.5mts.
Initially, the court ruled against the enforcement action taken by DVSA. However, following an appeal, the judge upheld DVSA’s view as correct. It was determined that the overall length of the vehicle should include all parts of the vehicle including the parts the crane is mounted on. Any fittings which overhang the front or rear of the vehicle combination would not be included in the overall length. It is also worth remembering that allowable vehicle lengths and overhangs differ depending on whether the vehicle is a rigid one or if it is a cab towing a trailer.
The result of this case will be used to inform future enforcement work and we will look to prosecute operators who are not keeping to the rules. This will help us support fair competition in industry and keep roads safe.
Example 2
A vehicle loaded with pontoon sections which was not an abnormal load but being transported incorrectly as STGO.
In this case, the vehicle was found to be overloaded at 29,460kgs (permitted 26,000kgs) on the tractor unit and measured at 18.mts (permitted 16.5mts). The operator claimed to have been told by the company which fitted the crane that it could be used legally and the dimensions of the crane could be subtracted. However, a DVSA examiner explained that this was incorrect and the vehicle needs to meet C&U dimensions.
The vehicle was prohibited for being overloaded. The following day the overloading issue was rectified when the operator informed the DVSA they had replaced the existing tractor unit with a lighter tractor unit. This enabled the driver and vehicle to continue their journey.
The diagrams on the website demonstrate where to measure the front and rear of the total length of the vehicle. The difference between the part of the “apparatus” extends beyond the front or rear of the vehicle. In this instance, the length can be discounted and the HIAB type crane can be included in the vehicle length.
To help make sure your vehicle is operating at permissible length and weight:
- consider using a shorter trailer with the cab – to keep the length down and weight lighter
- check the total weight of a lorry and trailer combination - the maximum for a tractor unit is 26,000kgs and the weight of the crane has a significant impact on the payload
