LCD headlamp developed

Lighting
Lighting and electronics company Hella has helped develop and construct a liquid crystal display (LCD) headlamp in collaboration with multiple project partners, including the University of Stuttgart's Institute of Large Area Microelectronics.

Hella lighting technology development vice-president Dr Michael Kleinkes says: “For the first time, we have integrated liquid crystal HD technology into a vehicle. Thanks to its great resolution and sharpness of detail, it opens up very new paths in automotive lighting technology.”

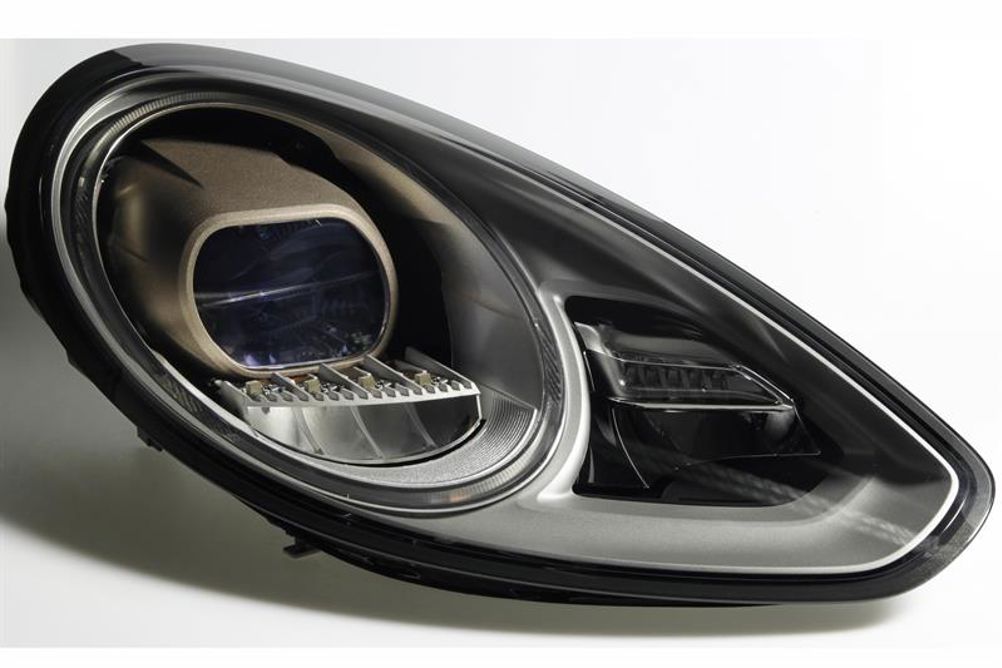

The new LCD headlamp projects 30,000 pixels onto the road, and adjusts the light pattern to various driving situations in real time.

Head of lighting technology pre-development at Hella, Christian Schmidt, says: “The use of an LC display is a further step towards digitalising lighting.”

This means the adaptation of the light pattern will be increasingly determined by the vehicle’s software. Individual light segments with other vehicles or strongly reflecting street signs can be blocked out or dimmed in a targeted manner. Highly complex functions are also conceivable – navigation arrows or lines showing the ideal lane can be projected onto the road.

Schmidt adds: “LCD technology enables functions that will also be relevant to autonomous driving. We will, therefore, make the technology fit for serial production.”

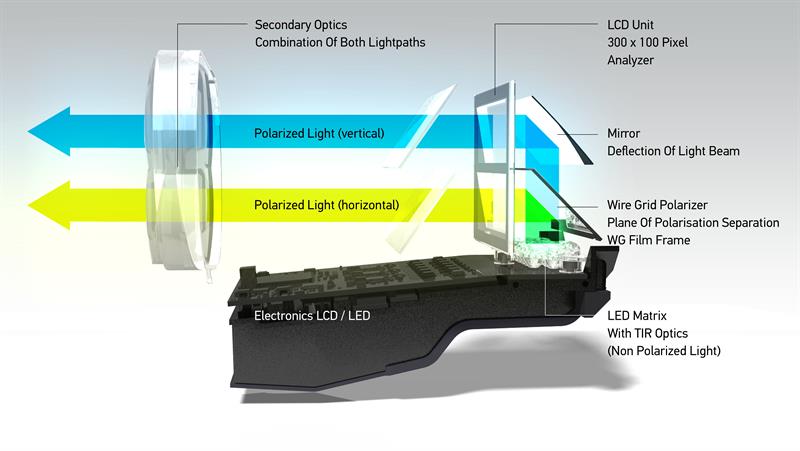

The LC display is the headlamp’s key component, situated between the LED light source and the projection lens. The display generates a matrix of 100 by 300 pixels that can be individually controlled and dimmed. A camera installed in the vehicle, as well as a sensor reading distances and speeds, will forward the information to the headlamp control unit via a processor. Subsequently, this will direct the individual display pixels up to 60 times per second. Twenty-five high-power LEDs arranged in three rows will serve as light source, and each LED’s light intensity will be adjusted to the respective lighting situation.

In the research project, Hella developed the concept, integrated the various components into the overall system, and developed an interface between the lighting control and headlamp. Test drivers at the University of Paderborn are currently testing a prototype under realistic driving conditions.

Due to increasing traffic volumes and safety requirements, intelligent lighting systems are of growing importance. LCD technology enables completely new functionalities and opportunities, and the use is not limited to passenger cars but also to commercial vehicles and buses.
